    25*28*20 Composite Bushing Stainless Steel Plus Ptfe Corrosion Resistant

    Ask Lasest Price
    Brand Name : IFAGb
    Model Number : 20*23*20
    Certification : China
    Price : Negotiation
    Payment Terms : T/T, L/C, PayPal
    Supply Ability : 1000 Piece/Pieces per Week
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

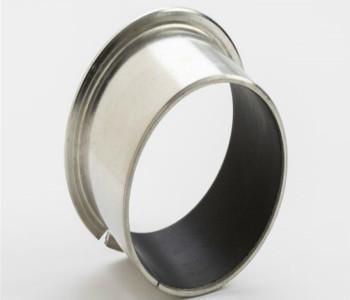

    25*28*20 Composite Bushing Stainless Steel Plus Ptfe Corrosion Resistant

    composite bushing,10*12*10,25*28*20.200*205*100,stainless steel plus copper plus ptfe,etc.gery,white.


    Material:Stainless Steel,copper Powder ,ptfe
    Name:Composite Bushing
    Feature:High Corrosion-resistant
    Friction Coefficient μ:0.03~0.18
    Color:Silver,grey
    Type:Stainless Steel Spray Bearing
    Bearing Pressure:100N/mm2
    Sliding Speed:2.5m/s

    Application features:

    SF-1SS stainless steel spray bearing is a high corrosion-resistant and wear-resistant bearing made of stainless steel as the base and coated with PTFE. The material is especially suitable for strong acid, strong alkali, light load medium and low speed occasions, and its wear resistance is obviously better than single PTFE bearing and graphite bearing.


    Application range:

    At present, the product has been widely used in chemical acid-base flowmeters, pumps, valves and corrosion-resistant sliding parts in the marine industry.


    The main parameters:

    Bearing pressure: 100N/mm2

    Friction coefficient μ: 0.03~0.18;

    Applicable temperature range: -190 ° C ~ 280 ° C;

    Sliding speed: 2.5m/s;

    Allow PV value (dry): 3.0N/mm2*m/3

    Allowable PV value (oil): 40N/mm2*m/3
